Il nostro nuovissimo catalogo 2023 per vetrate tagliafuoco in acciaio ed in alluminio e per portoni scorrevoli tagliafuoco.
Schede tecniche
Schede tecniche
Schede tecniche per vetrate tagliafuoco in acciaio ed in alluminio ed i loro relativi accessori.
- Vetrotech Pyroswiss E 60 internal – external – Data sheet259.72 KBPreviewData sheet

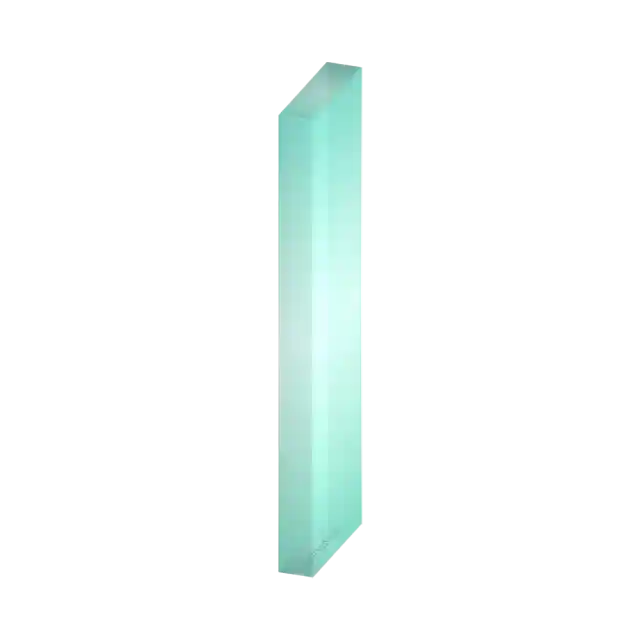

PYROSWISS 30
Article number: X7000006
Fire: E 30 (EN 13501-2)
Thickness: 6 mm
Composition: 6 mm (mono)
Weight: 15,0 kg/m²
React. fire: A1 (EN 13501-1)
Impact res.: 1(C)1 (EN 12600)
Sound Rw: 32 (-2, -2) dB (EN 140-3)
- Vetrotech Contraflam Lite EW 60 external – Data sheet141.26 KBPreviewData sheet

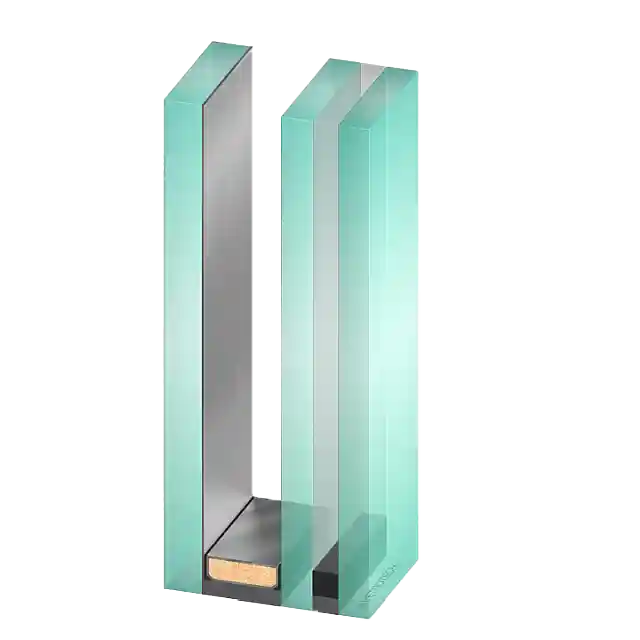

CONTRAFLAM Lite 60 Climaplus
Article number: ZY005665
Fire: EW 60 (EN 13501-2)
Thickness: 34 mm
Composition: 6 mm (mono) +14 mm (argon) + 14 mm (laminated)
Weight: 46,0 kg/m²
React. fire: B-s1, d0 (EN 13501-1)
Impact res.: 1(C)2/1(B)1 (EN 12600)
Sound Rw: 39 (-2, -6) dB (EN 140-3)
- Vetrotech Contraflam EI2 90 internal – Data sheet145.73 KBPreviewData sheet

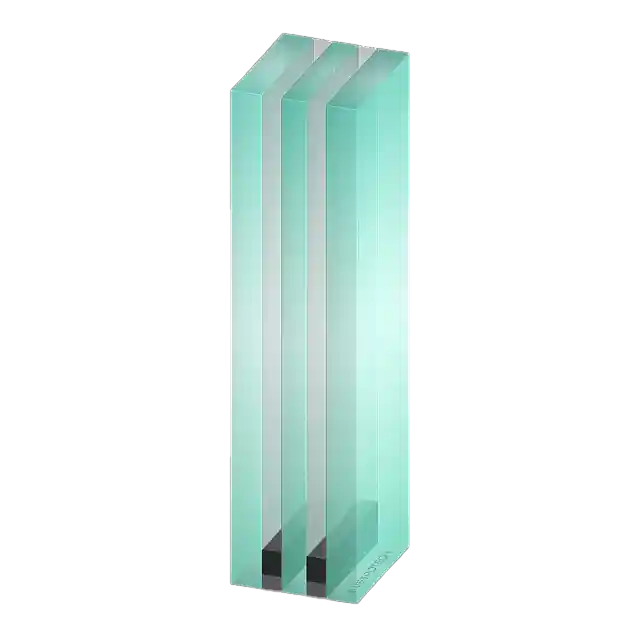

CONTRAFLAM 90-4
Article number: Y7229544
Fire: EI 90 (EN 13501-2)
Thickness: 40 mm
Composition: 40mm (laminated)
Weight: 82,0 kg/m²
React. fire: A2-s1, d0 (EN 13501-1)
Impact res.: 1(B)1 (EN 12600)
Sound Rw: 46 (-2, -3) dB (EN 140-3)
- Vetrotech Contraflam EI2 90 external – Data sheet126.00 KBPreviewData sheet
CONTRAFLAM 90-4 Climaplus
Article number: ZY006102
Fire: EI 90 (EN 13501-2)
Thickness: 58 mm
Composition: 6mm (mono) +12mm (argon spacer) +40mm (laminated)
Weight: 97,0 kg/m²
React. fire: B-s1, d0 (EN 13501-1)
Impact res.: 1(C)2/1(B)1 (EN 12600)
Sound Rw: 45 (-2, -2) dB (EN 140-3)
- Vetrotech Contraflam EI2 60 internal – Data sheet144.50 KBPreviewData sheet
CONTRAFLAM 60-3
Article number: Y7226547
Fire: EI 60 (EN 13501-2)
Thickness: 27mm
Composition: 27 mm (laminated)
Weight: 58,5 kg/m²
React. fire: A2-s1, d0 (EN 13501-1)
Impact res.: 1(B)1 (EN 12600)
Sound Rw: 43 (-2, -3) dB (EN 140-3)
- Vetrotech Contraflam EI2 30 internal – Data sheet144.06 KBPreviewData sheet
CONTRAFLAM 30
Article number: Y7223055
Fire: EI 60 (EN 13501-2)
Thickness: 16 mm
Composition: 16 mm (laminated)
Weight: 34,0 kg/m²
React. fire: A2-s1, d0 (EN 13501-1)
Impact res.: 1(B)1 (EN 12600)
Sound Rw: 38 (-2, -2) dB (EN 140-3)
- Vetrotech Contraflam EI2 30 external – Data sheet147.85 KBPreviewData sheet
CONTRAFLAM 30 Climaplus
Article number: ZY005145
Fire: EI 30 (EN 13501-2)
Thickness: 36 mm
Composition: 6 mm (mono) +14 mm (argon) + 16 mm (laminated)
Weight: 49,0 kg/m²
React. fire: B-s1, d0 (EN 13501-1)
Impact res.: 1(C)2/1(B)1 (EN 12600)
Sound Rw: 40 (-2, -4) dB dB (EN 140-3)
- Vetrotech Contraflam EI 120 internal – Data sheet221.99 KBPreviewData sheet
CONTRAFLAM 120-5
Article number:
Fire: EI 120 (EN 13501-2)
Thickness: 54 mm
Composition: 54 mm (laminated)
Weight: 115,0 kg/m²
React. fire: A2-s1, (EN 13501-1)
Impact res.: 1(B)1 (EN 12600)
Sound Rw: 47 (-2, -3) dB (EN 140-3)
- Vetrotech Contraflam Climaplus EI2 60 external – Data sheet124.81 KBPreviewData sheet
CONTRAFLAM 60-3 Climaplus
Article number: ZY006025
Fire: EI 60 (EN 13501-2)
Thickness: 47 mm
Composition: 6mm (mono) +14mm (argon spacer) +27mm (laminated)
Weight: 73,5 kg/m²
React. fire: B-s1, d0 (EN 13501-1)
Impact res.: 1(C)2/1(B)1 (EN 12600)
Sound Rw: 43 (-2, -6) dB (EN 140-3)
- Vetrotech Pyroswiss E 60 internal – external – Data sheet259.72 KBPreviewData sheet
PYROSWISS 30
Article number: X7000006
Fire: E 30 (EN 13501-2)
Thickness: 6 mm
Composition: 6 mm (mono)
Weight: 15,0 kg/m²
React. fire: A1 (EN 13501-1)
Impact res.: 1(C)1 (EN 12600)
Sound Rw: 32 (-2, -2) dB (EN 140-3)
- Vetrotech Contraflam Lite EW 60 external – Data sheet141.26 KBPreviewData sheet
CONTRAFLAM Lite 60 Climaplus
Article number: ZY005665
Fire: EW 60 (EN 13501-2)
Thickness: 34 mm
Composition: 6 mm (mono) +14 mm (argon) + 14 mm (laminated)
Weight: 46,0 kg/m²
React. fire: B-s1, d0 (EN 13501-1)
Impact res.: 1(C)2/1(B)1 (EN 12600)
Sound Rw: 39 (-2, -6) dB (EN 140-3)
- Vetrotech Contraflam EI2 90 internal – Data sheet145.73 KBPreviewData sheet
CONTRAFLAM 90-4
Article number: Y7229544
Fire: EI 90 (EN 13501-2)
Thickness: 40 mm
Composition: 40mm (laminated)
Weight: 82,0 kg/m²
React. fire: A2-s1, d0 (EN 13501-1)
Impact res.: 1(B)1 (EN 12600)
Sound Rw: 46 (-2, -3) dB (EN 140-3)
- Vetrotech Contraflam EI2 90 external – Data sheet126.00 KBPreviewData sheet
CONTRAFLAM 90-4 Climaplus
Article number: ZY006102
Fire: EI 90 (EN 13501-2)
Thickness: 58 mm
Composition: 6mm (mono) +12mm (argon spacer) +40mm (laminated)
Weight: 97,0 kg/m²
React. fire: B-s1, d0 (EN 13501-1)
Impact res.: 1(C)2/1(B)1 (EN 12600)
Sound Rw: 45 (-2, -2) dB (EN 140-3)
- Vetrotech Contraflam EI2 60 internal – Data sheet144.50 KBPreviewData sheet
CONTRAFLAM 60-3
Article number: Y7226547
Fire: EI 60 (EN 13501-2)
Thickness: 27mm
Composition: 27 mm (laminated)
Weight: 58,5 kg/m²
React. fire: A2-s1, d0 (EN 13501-1)
Impact res.: 1(B)1 (EN 12600)
Sound Rw: 43 (-2, -3) dB (EN 140-3)
- Vetrotech Contraflam EI2 30 internal – Data sheet144.06 KBPreviewData sheet
CONTRAFLAM 30
Article number: Y7223055
Fire: EI 60 (EN 13501-2)
Thickness: 16 mm
Composition: 16 mm (laminated)
Weight: 34,0 kg/m²
React. fire: A2-s1, d0 (EN 13501-1)
Impact res.: 1(B)1 (EN 12600)
Sound Rw: 38 (-2, -2) dB (EN 140-3)
- Vetrotech Contraflam EI2 30 external – Data sheet147.85 KBPreviewData sheet
CONTRAFLAM 30 Climaplus
Article number: ZY005145
Fire: EI 30 (EN 13501-2)
Thickness: 36 mm
Composition: 6 mm (mono) +14 mm (argon) + 16 mm (laminated)
Weight: 49,0 kg/m²
React. fire: B-s1, d0 (EN 13501-1)
Impact res.: 1(C)2/1(B)1 (EN 12600)
Sound Rw: 40 (-2, -4) dB dB (EN 140-3)
- Vetrotech Contraflam EI 120 internal – Data sheet221.99 KBPreviewData sheet
CONTRAFLAM 120-5
Article number:
Fire: EI 120 (EN 13501-2)
Thickness: 54 mm
Composition: 54 mm (laminated)
Weight: 115,0 kg/m²
React. fire: A2-s1, (EN 13501-1)
Impact res.: 1(B)1 (EN 12600)
Sound Rw: 47 (-2, -3) dB (EN 140-3)
- Vetrotech Contraflam Climaplus EI2 60 external – Data sheet124.81 KBPreviewData sheet
CONTRAFLAM 60-3 Climaplus
Article number: ZY006025
Fire: EI 60 (EN 13501-2)
Thickness: 47 mm
Composition: 6mm (mono) +14mm (argon spacer) +27mm (laminated)
Weight: 73,5 kg/m²
React. fire: B-s1, d0 (EN 13501-1)
Impact res.: 1(C)2/1(B)1 (EN 12600)
Sound Rw: 43 (-2, -6) dB (EN 140-3)
Certificati
Certificati
Certificati di conformità (CoC), dichiarazioni di prestazione (DoP) per le vetrate tagliafuoco in acciaio ed in alluminio ed i loro relativi componenti ed accessori.

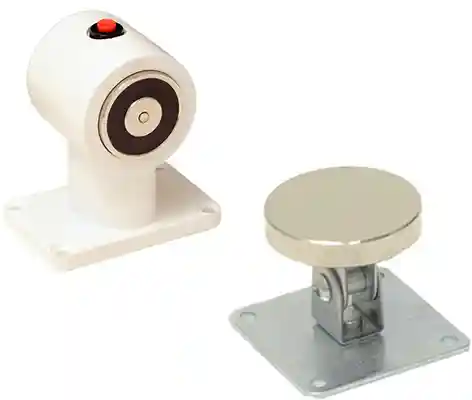

- Opera Electro Magnet EMP (floor mounted) – Dop+install instructions177.31 KBPreviewCertificateInstructions

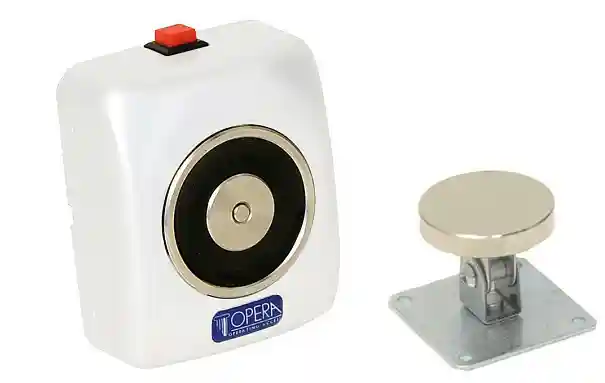

- Opera Electro Magnet EM (wall mounted) – Dop+install instructions 1137.64 KBPreviewCertificateInstructions
The Opera electro magnet
- Opera Electro Magnet EM (wall mounted) – Dop+install instructions137.64 KBPreviewCertificateInstructions
- Opera Electro Magnet EMP (floor mounted) – Dop+install instructions177.31 KBPreviewCertificateInstructions
- Opera Electro Magnet EM (wall mounted) – Dop+install instructions 1137.64 KBPreviewCertificateInstructions
The Opera electro magnet
- Opera Electro Magnet EM (wall mounted) – Dop+install instructions137.64 KBPreviewCertificateInstructions
Istruzioni di posa e manuali
Istruzioni di posa e manuali
Instruzioni di posa, uso e manutezione per vetrate tagliafuoco in acciaio ed in alluminio.
- Opera Electro Magnet EMP (floor mounted) – Dop+install instructions177.31 KBPreviewCertificateInstructions
- Opera Electro Magnet EM (wall mounted) – Dop+install instructions 1137.64 KBPreviewCertificateInstructions
The Opera electro magnet
- Opera Electro Magnet EM (wall mounted) – Dop+install instructions137.64 KBPreviewCertificateInstructions
- Opera Electro Magnet EMP (floor mounted) – Dop+install instructions177.31 KBPreviewCertificateInstructions
- Opera Electro Magnet EM (wall mounted) – Dop+install instructions 1137.64 KBPreviewCertificateInstructions
The Opera electro magnet
- Opera Electro Magnet EM (wall mounted) – Dop+install instructions137.64 KBPreviewCertificateInstructions
Disegni tecnici
Disegni tecnici
Disegni tecnici in PDF per le varie composizioni di vetrate tagliafuoco in acciaio ed in alluminio.
